TD / D Type Bucket Elevator

Product Introduction

The TD/D type bucket elevator is designed for vertical conveying of powder, granular, and small bulk materials with low abrasiveness.
Using a series of evenly spaced buckets fixed on a belt, the elevator transports materials vertically to the required height.
Materials are fed into the buckets at the lower section and discharged at the upper section under centrifugal or gravity discharge, depending on the operating condition.

This equipment features stable operation, large conveying capacity, long service life, and good sealing performance.
It adopts assembled casing for easy maintenance, gravity tensioning, guide bearing structure, and wear-resistant chain or belt options.
With compact size and small footprint, it is widely used in grain processing, feed mills, cement plants, chemical industry, building materials, and other industrial sectors.

Technical Parameters

Model	TD160	TD250	TD315	TD400
Bucket Type	Q / H / Zd / Sd	Q / H / Zd / Sd	Q / H / Zd / Sd	Q / H / Zd / Sd
Conveying Capacity (m³/h)	5.4 / 9.6 / 16 / 12	12 / 22 / 33 / 25	17 / 30 / 45 / 50	25 / 40 / 66
Bucket Width (mm)	160	250	315	400
Bucket Spacing (mm)	0.9 / 1.2 / 1.9	1.3 / 1.9 / 2.4	2.0 / 3.6 / 4.2	3.6 / 5.8 / 9.6
Bucket Speed (m/s)	1.4	1.6	1.8	1.8
Belt Width (mm)	200	250	315	500
Max Material Size (mm)	25	35	45	55

What is included in your material processing equipment system?

Our system typically includes vibrating screens, feeders, belt conveyors, bucket elevators, crushers, dust collectors, and related control components.
All equipment can be fully customized according to material type, capacity requirements, and project specifications.

Do you provide OEM or custom manufacturing services?

Yes. We support OEM/ODM manufacturing, custom design, special materials, motor brands, screening mesh sizes, and complete layout solutions based on customer drawings or technical requirements.

How long is the production and delivery time?

Standard equipment: 7–15 days
Customized equipment: 15–30 days
Large-scale or fully customized systems may require additional time depending on complexity.

What quality standards do your products comply with?

All products are manufactured according to ISO quality control standards.
Key components undergo strict testing for vibration stability, load endurance, structural strength, and long-term reliability.

Do you provide on-site installation or technical support?

Yes. We offer detailed installation manuals, assembly drawings, video instructions, and remote commissioning support.
On-site installation services can be arranged for large mining or industrial projects.

What is your warranty policy?

We provide a 12-month warranty for core equipment and lifetime technical support.
Spare parts and wear parts are available at competitive factory pricing.

How do you package and ship the products?

All machines are packaged with export-standard wooden cases, steel framing, moisture protection, and secure fastening.
We arrange shipping by sea, air, railway, or multimodal transport depending on customer needs.

Product Category

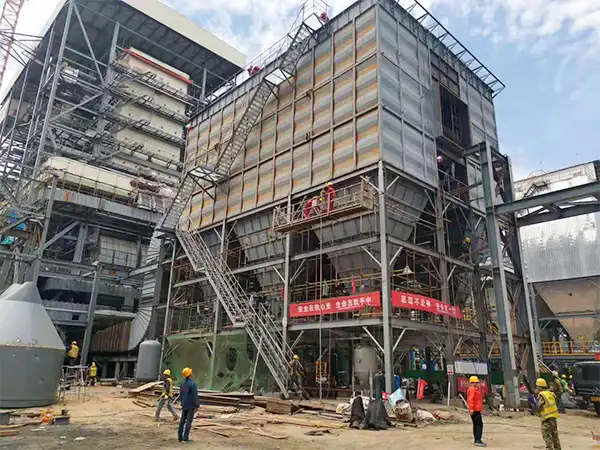

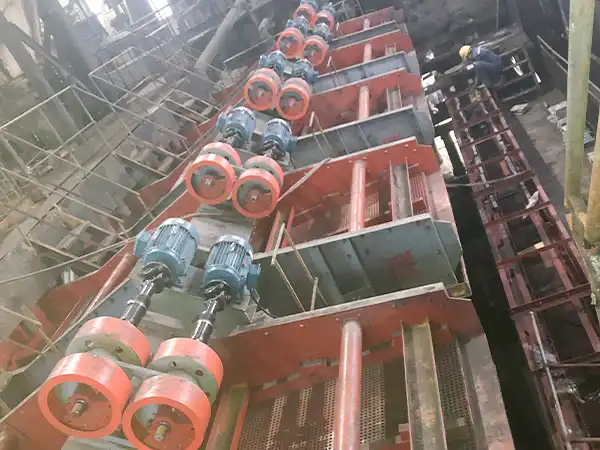

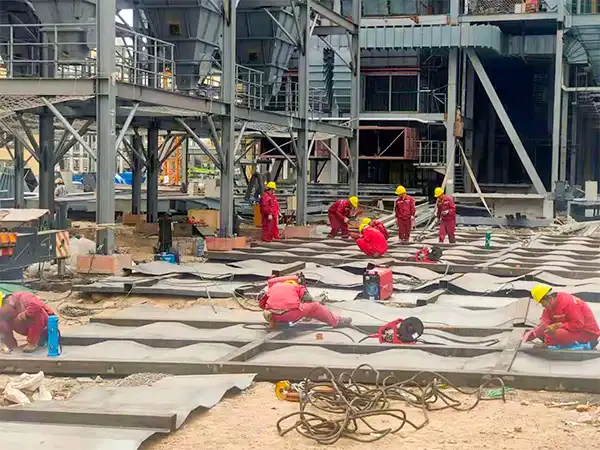

recent cases
