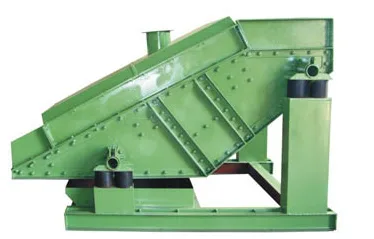

XBZS Inertial Vibrating Screen

Overview

The XBZS inertial vibrating screen is a new type of screening equipment widely used in mining, coal, metallurgy, electricity, building materials, and other industries.
It is suitable for grading large bulk materials as well as medium- and small-sized granular materials, offering stable performance and high efficiency.

Structure & Features

The XBZS screen is composed of a screen box, vibrator (or exciter), damping system, and supporting structure.
With a screen box inclination angle of 20°–35°, the machine offers the following advantages compared with conventional screens:

Lightweight and low spare-part consumption
Simple structure and reliable operation
High efficiency with low energy consumption
Compact design with strong screening performance
Low equipment weight for easy installation and layout
Screening efficiency is generally 30%–40% higher than ordinary screens
- Particularly suitable for secondary screening after high-temperature sintering processes.

Technical Parameters

1) Motor-Driven XBZS Series

Model	Screen Area (m²)	Inclination (°)	Max Feed Size (mm)	Screen Aperture (mm)	Capacity (t/h)	Frequency (Hz)	Double Amplitude (mm)	Motor Model	Power (kW)	Voltage (V)
XBZS-0918	16	28	≤150	5–30	30–80	16	5 ± 0.5	YZO-17-4	1×0.75	380
XBZS-1022	22	28	≤150	5–30	50–120	16	5 ± 0.5	YZO-20-4	2×1.1	380
XBZS-1024	24	28	≤150	5–30	70–150	16	5 ± 0.5	YZO-20-6	2×2.0	380
XBZS-1224	28	28	≤150	5–30	80–180	16	5 ± 0.5	YZO-20-6	2×2.0	380

2) Exciter-Driven XBZS Series

Model	Screen Area (m²)	Inclination (°)	Max Feed Size (mm)	Screen Aperture (mm)	Capacity (t/h)	Frequency (Hz)	Double Amplitude (mm)	Motor Model	Power (kW)	Voltage (V)
XBZS-1230	36	28	≤200	5–30	120–150	15	5 ± 0.5	Y132S-6	2×3.0	380
XBZS-1536	54	28	≤200	5–30	150–240	15	5 ± 0.5	Y132M-6	2×4.0	380
XBZS-1840	72	28	≤200	5–30	180–260	15	5 ± 0.5	Y132M-6	2×4.0	380
XBZS-1842	75.6	28	≤200	5–30	200–300	15	5 ± 0.5	Y132L-6	2×5.5	380
