Product Overview

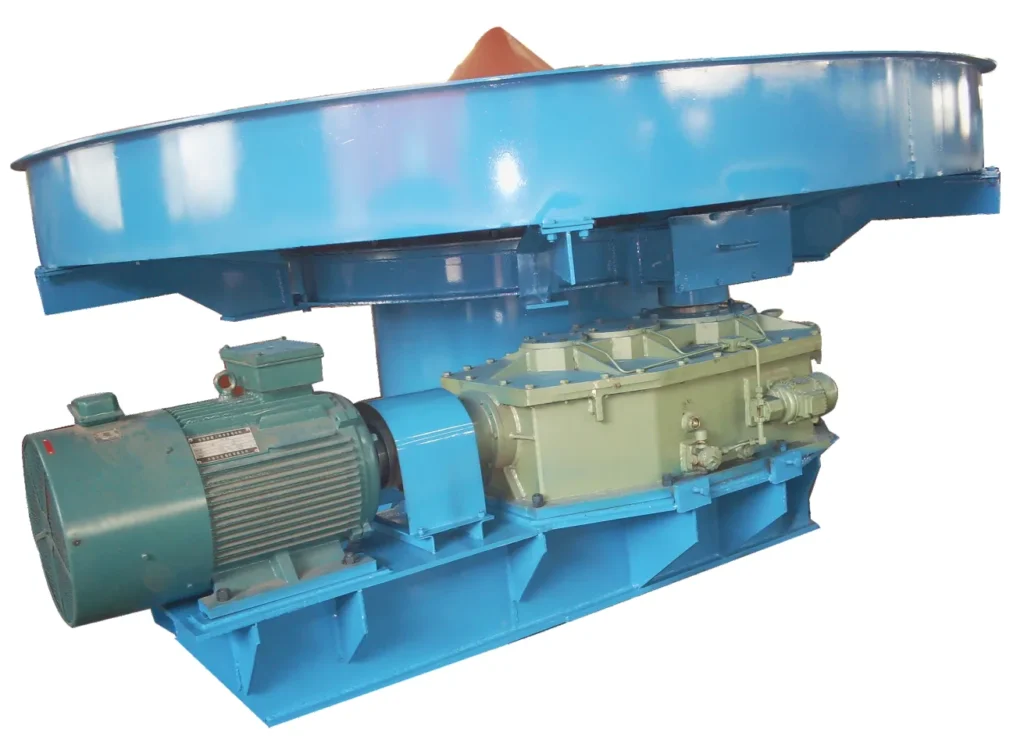

The YP Vertical Disc Feeder is an efficient new-generation feeding and batching equipment.
It is widely used for uniform, continuous, and automatic feeding of various bulk materials from silos, hoppers, and production lines.
By integrating feeding, batching, and proportioning into a single machine, the YP series is especially suitable for:
- Metallurgy
- Mining
- Coal
- Building materials
- Chemical industry
It ensures stable material flow, accurate feeding performance, and improved production efficiency.
Structure Composition
The YP Vertical Disc Feeder mainly consists of:
- Drive unit (motor, reducer, coupling)
- Feeding disc assembly
- Material hopper
- Support frame and transmission components
It features compact structure, stable operation, and convenient maintenance.
Key Features (Selling Points)
- Continuous and uniform feeding for powder, granular, and small block materials
- Integrated batching & feeding, suitable for automated production lines
- Adjustable disc speed for flexible capacity control
- Ideal for proportioning systems and conveyor feeding
- High stability, low wear, long service life
- Energy-saving design with frequency control motor
Technical Specifications (English Version)
| Model | Particle Size (mm) | Bulk Density (t/m³) | Moisture Content | Disc Diameter (mm) | Capacity (t/h) | Disc Speed (r/min) | Motor Power (kW) |
|---|---|---|---|---|---|---|---|
| YP-1600 | 0–80 | 0.5–2.5 | ≤8% (normal) / ≤13% (wet) | 1600 | 10–100 | 0.6–6 | 5.5–11 |
| YP-2000 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 2000 | 20–200 | 0.5–5 | 5.5–15 |
| YP-2200 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 2200 | 25–250 | 0.5–5 | 5.5–15 |
| YP-2500 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 2500 | 30–300 | 0.5–5 | 5.5–15 |
| YP-2800 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 2800 | 40–400 | 0.5–5 | 5.5–18.5 |
| YP-3000 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 3000 | 50–500 | 0.5–5 | 5.5–18.5 |
| YP-3200 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 3200 | 60–600 | 0.5–5 | 7.5–22 |
| YP-3600 | 0–80 | 0.5–2.5 | ≤8% / ≤13% | 3600 | 90–900 | 0.5–5 | 9–30 |
