Application

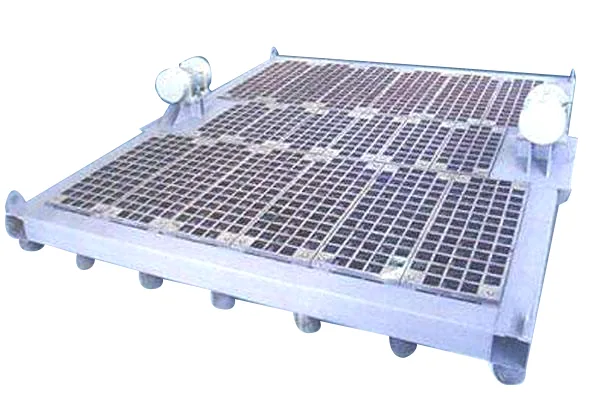

The ZB vibrating grate plate is a high-frequency vibrating deck installed at the bottom of ore bins.
It effectively prevents arch formation, blockage, and material bridging, ensuring that bulk materials can discharge continuously and evenly.
When material accumulates or sticks inside the bin, the vibration force breaks the arch and restores smooth flow, preventing sudden collapse or uncontrolled dumping. This improves operational safety and protects equipment and personnel.
ZB vibrating grate plates are widely used in:
- Mining
- Metallurgy
- Coal preparation
- Building materials
- Chemical industry
Structural Features
The vibrating grate plate is mainly composed of:
- Grate frame
- Vibrating motor
- Supporting springs
- Damping components
Key features:
- Strong vibration force, suitable for various bulk materials.
- Wear-resistant structure, with replaceable grate bars based on working conditions.
- Supports one or two vibrating motors depending on model size.
- Large models (>20 m² grate area) adopt dual-motor drive or double-shaft vibrator drive.
- Customizable grate gaps to match different types of material and flow requirements.
Technical Parameters
| Model | Grate Area (mm) | Grate Gap (mm) | Vibrating Motor Model | Power (kW) | Speed (r/min) | Overall Size (mm) |
|---|---|---|---|---|---|---|
| ZB230 | 3200×3000 | 100×100 | YZS-50-6 | 3.7 | 750 | 3620×3400×1171 |
| ZB340 | 3200×4000 | 100×100 | YZS-50-6 | 3.7 | 750 | 4420×3400×1171 |
| ZB430 | 4000×3000 | 100×100 | YZS-50-6 | 3.7 | 750 | 3620×4200×1171 |
| ZB450 | 3600×4500 | 100×100 | 2×3.7 | 750 | 5690×4500×1220 | |
| ZB600 | 6000×5000 | 100×100 | YZS-75-6 | 2×5.5 | 750 | 8120×6900×1280 |
