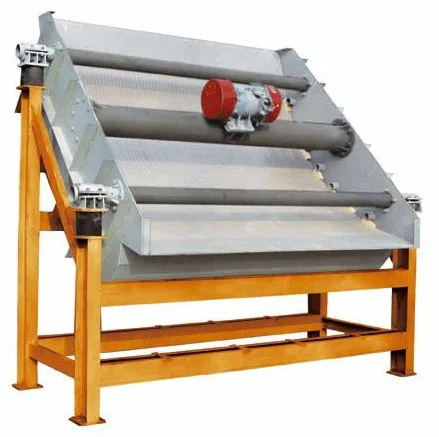

ZHS Vibrating Arc Screen

Application

The ZHS vibrating arc screen is mainly used in coal preparation, metallurgy, chemical industry, dehydration, desliming, and separation operations.
It is also widely applied in coal slurry recovery, especially in clean coal dehydration processes.
The screen is suitable for fine particle classification, efficient slurry removal, and dewatering.

Structural Features

The ZHS vibrating arc screen is a fine-grain classification and dewatering device.
Its main components include:

Arc-shaped screen frame
Stainless-steel wedge wire screen panel
Unbalanced vibration motor
Machine base
Discharge chute

Key advantages:

Simple and compact structure, easy installation and maintenance.
High screening efficiency for fine-granular materials.
Strong adaptability, especially suitable for coal slurry and fine minerals.
Equipped with 0.5 mm or larger slot wedge wire panels,
using YZO series vibration motors with 3 mm design vibration amplitude.

Technical Parameters

Model	Type (Single/Double)	Capacity (m³/h)	Slot Opening (mm)	Screen Width B (mm)	Installation Angle (°)	Amplitude (mm)	Speed (rpm)	Vibration Motor	Motor Power (kW)
ZHS1200	Single	80–120	0.3–1.0	1200	52°	0.5–1	1460	YZO-5-4	0.4×2
ZHS1600	Single	120–160	0.3–1.0	1600	52°	0.5–1	1460	YZO-10-4	0.75×2
ZHS2000	Single	200–240	0.3–1.0	2000	52°	0.5–1	1460	YZO-10-4	0.75×2
ZHS2400	Single	280–350	0.3–1.0	2400	52°	0.5–1	1460	YZO-15-4	1.5×2
ZHS2800	Single	350–420	0.3–1.0	2800	52°	0.5–1	1460	YZO-15-4	1.5×2
ZHS3200	Single	420–480	0.3–1.0	3200	52°	0.5–1	1460	YZO-20-4	2.0×2
ZHS3600	Double	480–520	0.3–1.0	3600	52°	0.5–1	1460	YZO-10-4	0.75×2
ZHS3800	Double	520–600	0.3–1.0	3800	52°	0.5–1	1460	YZO-10-4	0.75×2

What is included in your material processing equipment system?

Our system typically includes vibrating screens, feeders, belt conveyors, bucket elevators, crushers, dust collectors, and related control components.
All equipment can be fully customized according to material type, capacity requirements, and project specifications.

Do you provide OEM or custom manufacturing services?

Yes. We support OEM/ODM manufacturing, custom design, special materials, motor brands, screening mesh sizes, and complete layout solutions based on customer drawings or technical requirements.

How long is the production and delivery time?

Standard equipment: 7–15 days
Customized equipment: 15–30 days
Large-scale or fully customized systems may require additional time depending on complexity.

What quality standards do your products comply with?

All products are manufactured according to ISO quality control standards.
Key components undergo strict testing for vibration stability, load endurance, structural strength, and long-term reliability.

Do you provide on-site installation or technical support?

Yes. We offer detailed installation manuals, assembly drawings, video instructions, and remote commissioning support.
On-site installation services can be arranged for large mining or industrial projects.

What is your warranty policy?

We provide a 12-month warranty for core equipment and lifetime technical support.
Spare parts and wear parts are available at competitive factory pricing.

How do you package and ship the products?

All machines are packaged with export-standard wooden cases, steel framing, moisture protection, and secure fastening.
We arrange shipping by sea, air, railway, or multimodal transport depending on customer needs.
