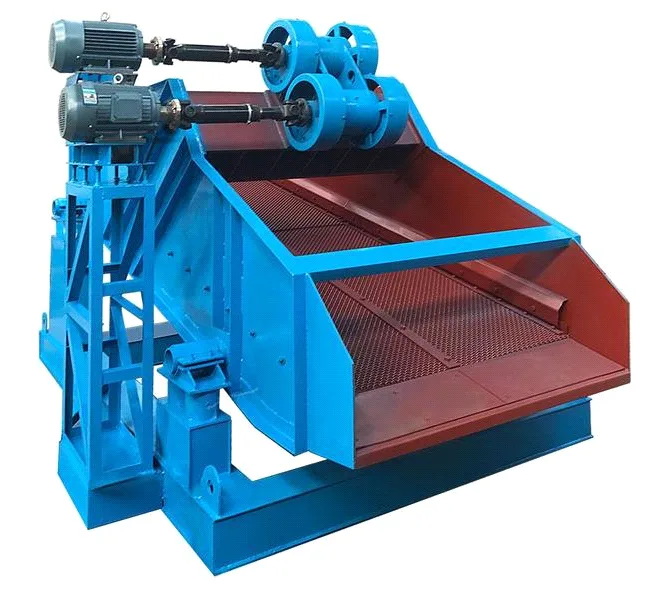

ZSG High-Efficiency Heavy-Duty Vibrating Screen

Application

The ZSG heavy-duty vibrating screen is a new type of screening equipment widely used in mining, coal, metallurgy, building materials, refractory materials, and other industries.
It is suitable for screening large bulk materials and medium- and small-sized granular materials with high screening efficiency and strong performance.

Structure & Features

The ZSG series heavy-duty screen consists of a vibration exciter, screen box, supporting spring, feed inlet, discharge outlet, and base.
Compared with conventional screens, it offers the following advantages:

Compact structure with high screening efficiency
Low weight and easy installation or layout arrangement
High energy efficiency with reduced power consumption
Low spare-part consumption and easy maintenance
Simple structure and stable operation
Modular screen panels that are easy to replace

Technical Parameters

Model	Screening Capacity (t/h)	Max Feed Size (mm)	Screen Area (m²)	Amplitude (mm)	Double-Amplitude (mm)	Motor Power (kW)
ZSG-1020	10–200	≤250	2.0	3–6	6	2×2.2
ZSG-1030	15–250	≤350	3.0	4–8	8	2×2.2
ZSG-1530	20–350	≤400	4.5	5–10	10	2×3.7
ZSG-1540	25–400	≤400	6.0	5–12	12	2×5.5
ZSG-1550	30–500	≤400	7.5	6–12	12	2×5.5
ZSG-1850	30–600	≤400	7.5	6–12	12	2×7.5

What is included in your material processing equipment system?

Our system typically includes vibrating screens, feeders, belt conveyors, bucket elevators, crushers, dust collectors, and related control components.
All equipment can be fully customized according to material type, capacity requirements, and project specifications.

Do you provide OEM or custom manufacturing services?

Yes. We support OEM/ODM manufacturing, custom design, special materials, motor brands, screening mesh sizes, and complete layout solutions based on customer drawings or technical requirements.

How long is the production and delivery time?

Standard equipment: 7–15 days
Customized equipment: 15–30 days
Large-scale or fully customized systems may require additional time depending on complexity.

What quality standards do your products comply with?

All products are manufactured according to ISO quality control standards.
Key components undergo strict testing for vibration stability, load endurance, structural strength, and long-term reliability.

Do you provide on-site installation or technical support?

Yes. We offer detailed installation manuals, assembly drawings, video instructions, and remote commissioning support.
On-site installation services can be arranged for large mining or industrial projects.

What is your warranty policy?

We provide a 12-month warranty for core equipment and lifetime technical support.
Spare parts and wear parts are available at competitive factory pricing.

How do you package and ship the products?

All machines are packaged with export-standard wooden cases, steel framing, moisture protection, and secure fastening.
We arrange shipping by sea, air, railway, or multimodal transport depending on customer needs.
